PCD Saw Blade/Diamind Saw Blade for Panel Sizing
Essential Details：
Product Name: saw blade / diamond saw blade / PCD saw blade / PD saw blade

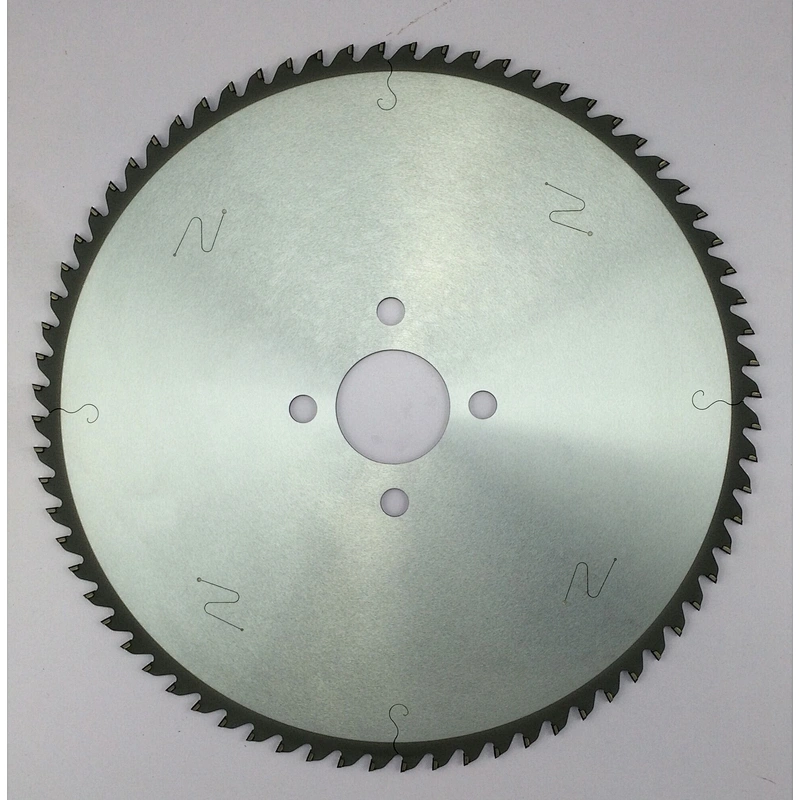

Specification:350x4.4x60x84T (Main saw blade for Panel Sizing)
Application：
The PCD saw blade/diamond saw blade for the production of furniture, wardrobe, cupboard, etc

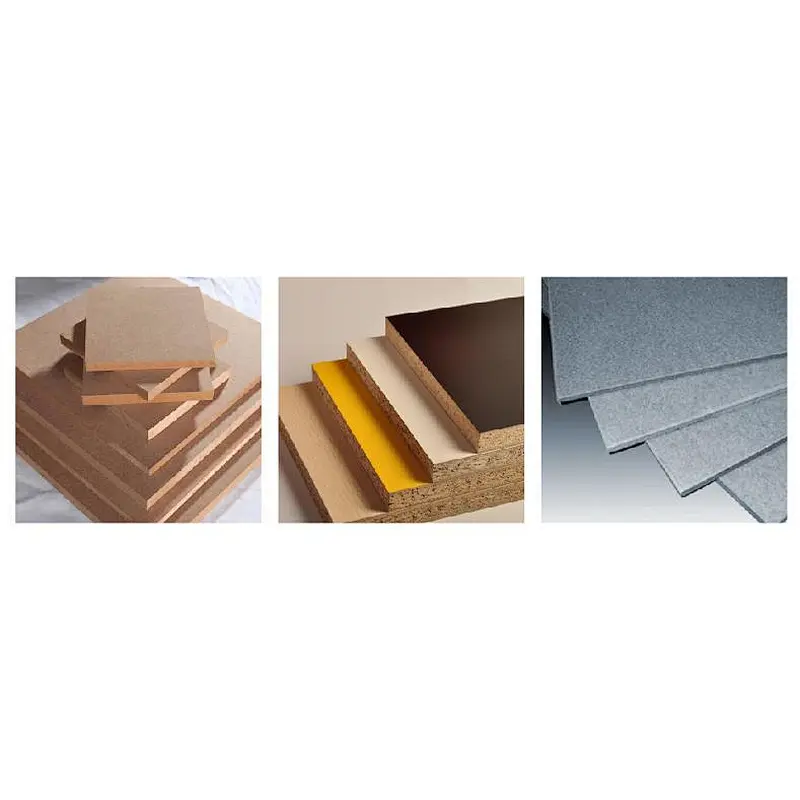

Suitable Materials：
Phenolic compact laminate-panel,cement,fiberboard,etc
Apply Equipment：
For the Panel Sizing Saw Blade of the Nanxing Machine.

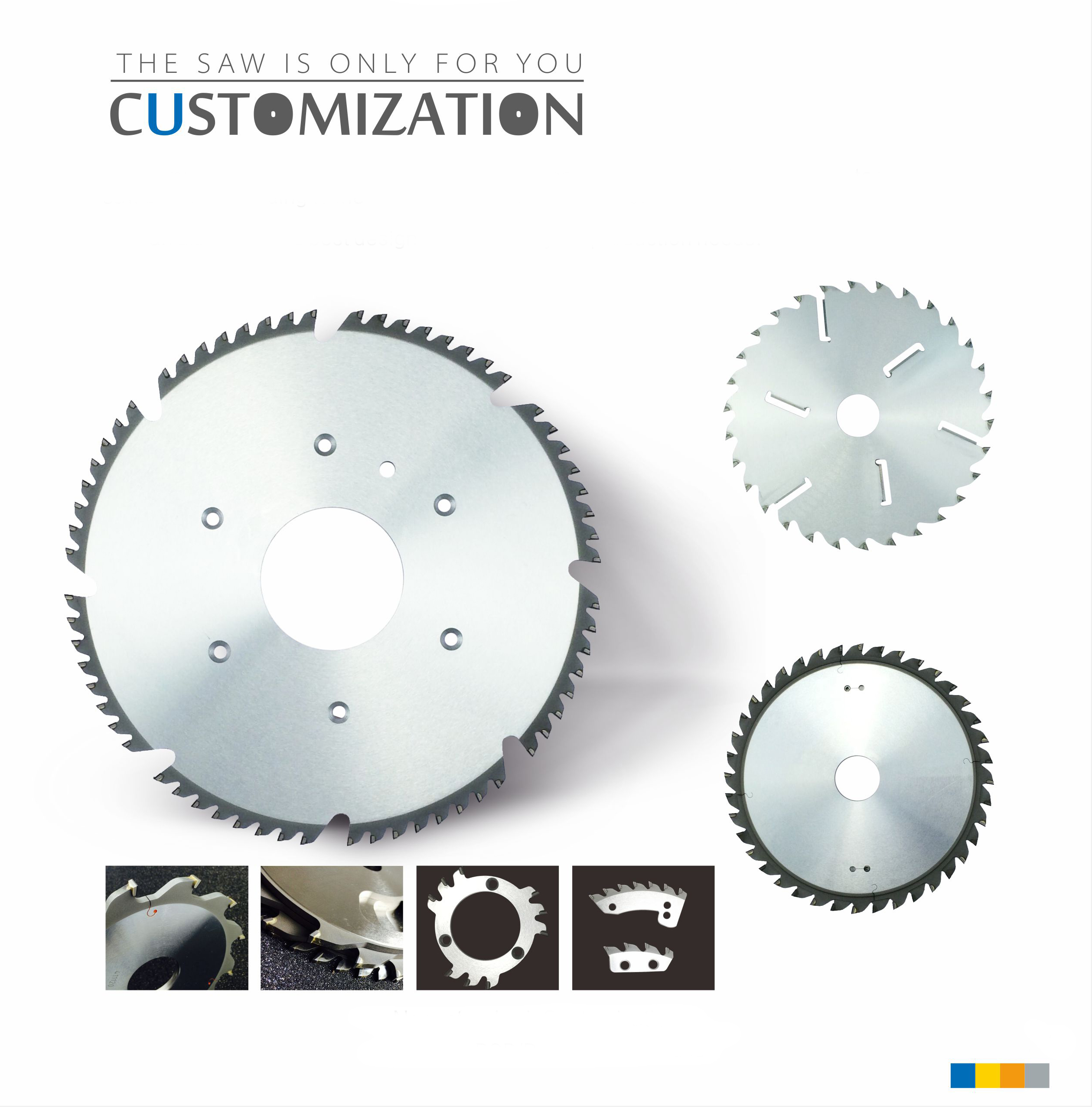

Non-standard Customization PCD saw blade/diamond saw blade as follows:
| Out Diameter | Kerf | Inner Diameter | Numbers of teeth |
| 150/160 180/200 | 4.3/5.3 4.7/5.7 5.0/6.0 | 25.4/30/45 50/55/65 | 24P/30P 36P/40P |
| 350/360 380/400 420/450 480/520/570 | 4.4 4.8 5.2 | 30/60 75/80 | 72P/80P 84P/96P |
Product Superiority：
Technical Support：
We work on providing professional technical support, solutions and services to clients.
We can customize all kinds of non-standard saw blades according to the drawings and samples.
Use Notes：
Choose to use
Please do not use diamond saw blade to cut solid wood material with hard knot (such as pine).
Please use the diamond saw blade cautiously when cutting wood-based panels with more impurities, such as particle board with stones and nails.

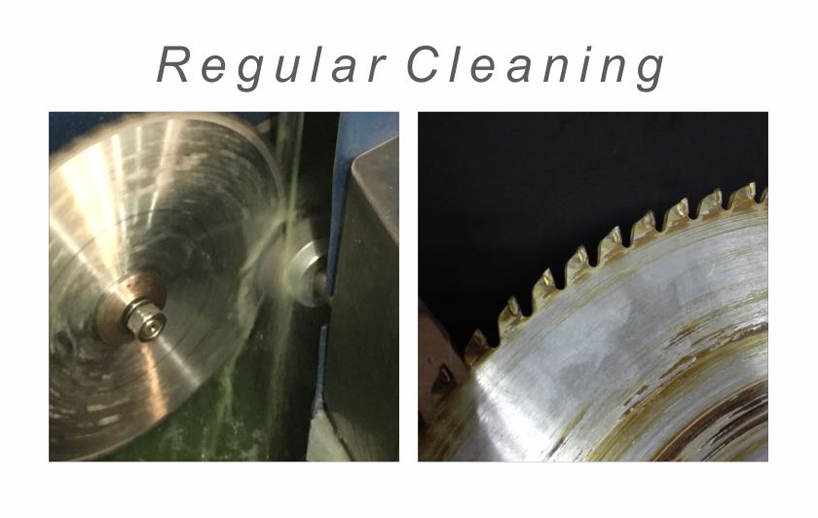

Regular Cleaning
After a certain period of regular cutting, if the cutting resistance increases, the noise is high and the material is blackened, or the tooth have glue on it and the material is chipped, etc., please remove the saw blade in time to clean. Soak the saw blade in antirust water or alkaline water for about one hour, then use a brush to clean the teeth and the surface.

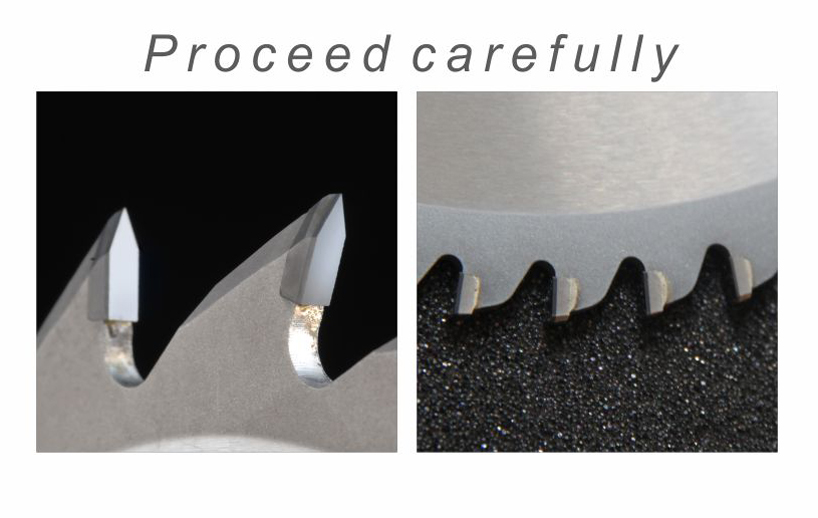

Proceed Carefully
Diamond has high hardness and brittleness, which makes it easy to damage, therefore special care should be taken when handling to prevent chipping.

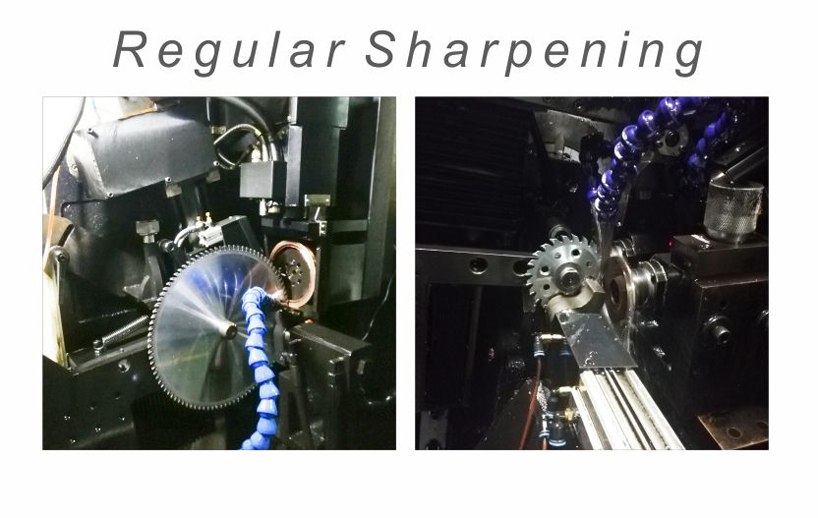

Regular Sharpening
Regular inspections are needed. If the cutter head has obvious abrasion and chipped edge, or saw blade has glue on it, repair it in time to avoid severe abrasion and even breakage. Saw blade should be regularly grinding. Timely and regular grinding can give the maximum benefit of the saw blade.
